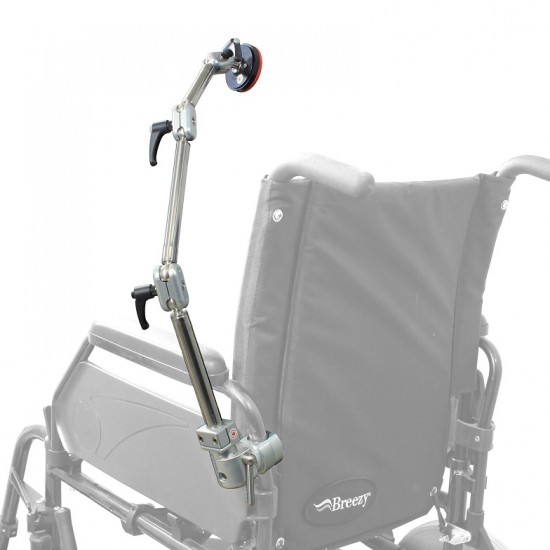

3-Length LiteMount with adjustable ball joints designed to hold switches. The ball joints are adjusted via handles.
- Weight support up to 1kg with included handle kit (1.5kg with manual bolts instead).
- Mount includes 3 tubes and 3 double ball joints with an overall length of 28" as standard. Other lengths available on request.
- Supplied with a Lite Frame Clamp Inner Piece as standard to fit 1" round frames (also 7/8", 3/4", 22mm & 20mm round frames with sleeves if required). Additional sleeves are available if required to fit 1.5cm and 0.5" square frames.
- Can be supplied with Standard Series frame clamp inner piece if required using an adaptor at extra cost. Contact us for further details.
Set of 3 handles included to attach to ball joints, enabling easier adjustment. Note that these handles reduce the load bearing to 1kg max.
End fitting can be swapped out to use the LiteMount for another purpose.
Please Note: Due to the need to ensure Frame Clamp compatibility, the LiteMount is only available for purchase via direct contact.
|Product Type||Wheelchair Mount|
|Mount Style||Adjustable Joints|
|Max Weight Support||1.0kg|
|Frame Clamp Assembly||Lockable|
|Switches (BB / JB)||Yes|
- Stock: Not for Online Purchase
- Model: LM-A/SW/3H
