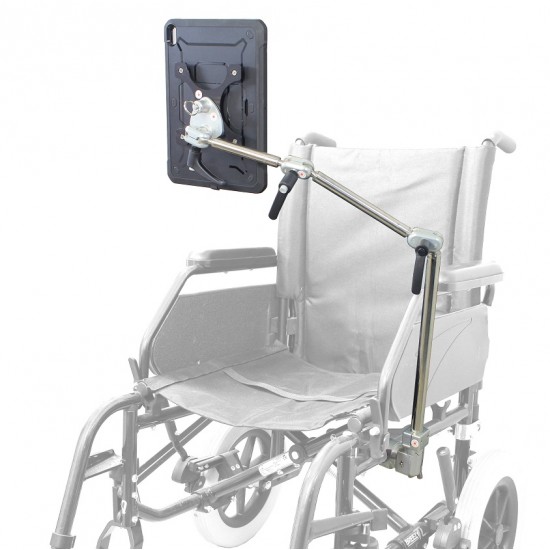

Articulating LiteMount with LQR (with Handle Kit)

3-Length LiteMount with adjustable ball joints and Lite Quick-Release Base designed to hold lightweight devices such as tablets. The ball joints are adjusted via handles.

• Suitable for devices up to 1kg with included handle kit (1.5kg with manual bolts instead).
• Mount includes 3 tubes and 3 double ball joints with an overall length of 28" as standard. Other lengths available on request.
• Supplied with a Lite Frame Clamp Inner Piece as standard to fit 1" round frames (also 7/8", 3/4", 22mm & 20mm round frames with sleeves if required). Additional sleeves are available if required to fit 1.5cm and 0.5" square frames.
• Can be supplied with Standard Series frame clamp inner piece if required using an adaptor at extra cost. Contact us for further details.

Handles
Set of 3 handles available to attach to ball joints, enabling easier adjustment. Note that these handles reduce the load bearing to 1kg max.

Optional End-Fittings
End fitting can be swapped out to use the LiteMount for another purpose.

Please Note: Due to the need to ensure Frame Clamp compatibility, the LiteMount is only available for purchase via direct contact.
